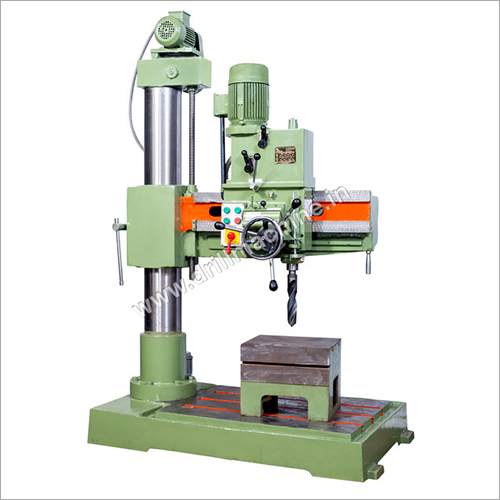

All Geared Radial Drilling Machine

All Geared Radial Drilling Machine
All Geared Radial Drilling Machine
Product Code : 40/900mm Cap
Brand Name : SIDDHAPURA ENGINEERING
Product Description

All Geared Radial Drilling Machine

Features :-

  •  Specially Design Heavy duty harden & Grounded drilling gear.
  • Precision anti friction bearing for all rotating parts .
  • Auto as well as manual feeds.
  • Speed range to suite various drilling operation.
  • Coolant pump with built in coolant tank in base plate only.
  • Complete with electrical ready to instant use.

Specification :-

Description

Capacity & Size

Capacity


Drilling Capacity In MS

40mm

Drilling Capacity in CI

45mm

Tapping in MS

25mm

Rough Boring in MS

60mm

Drilling Head


Spindle Nose Tapper

MT-4

Spindle Travel

175mm

Number of Spindle Speed

8

Range of Spindle Speed

60 TO 1000RPM

Number of Power Feed

2

Range of Power Feed

0.20-0.10mm Rev

Working Range


Drilling Radius Max./Min.

1040/530mm

Distance from Column to Spindle Max./Min.

950/440mm

Distance from Spindle Base Max./Min.

1150-320

Diameter of Column

180mm

Box Table LXWXH

380 X 300 X 300

Base Plate


Base Plate Area LXWXH

1350 X 760 X 160

Working Surface

870 x 630

Number & Size of T-Slot

3/16mm

Power


Drilling Motor (Two Speed )

2/1400 Hp /RPM [ 50 Cycle]

2/2800 Hp /RPM [ 50 Cycle]

Elevation Motor for ARM

0.5 Hp /1400 Hp / RPM

[ 50 Cycle ]

Shipping Size Approx L x W x H

1750 X 1000 X 2000
