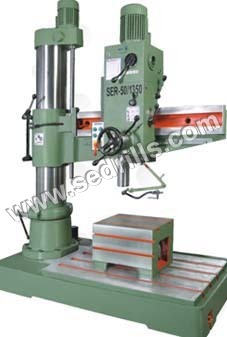

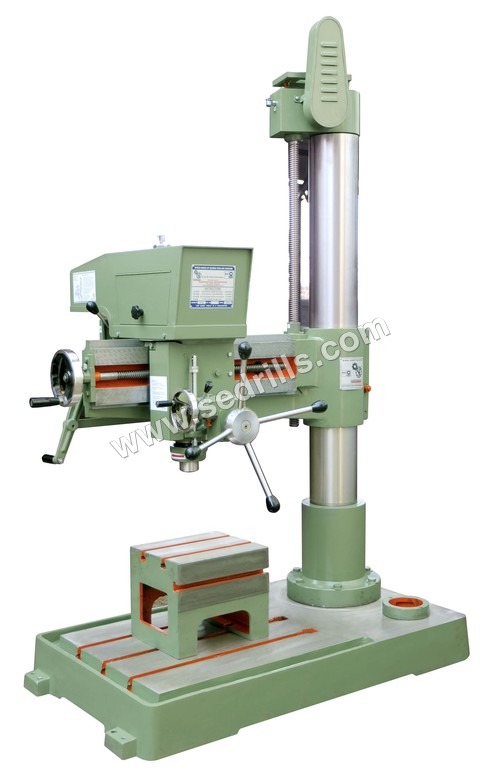

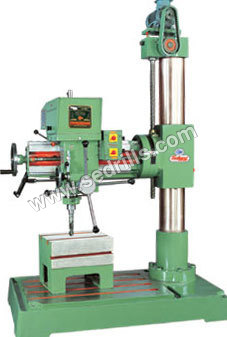

Universal Radial Drilling Machine

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

We are one of the leading manufacturers, suppliers and traders of Universal Radial Drilling Machines in the market. These machines are fabricated using premium quality raw material sourced from authentic vendors of the market. These machines are widely appreciated for their smooth & efficient performance. These machines are known for high tensile strength and easy to adjust feature. These Universal Radial Drilling Machines are very versatile and are suitable for performing multiple drilling operations.

Universal Radial Drilling Machine

Capacity
Drilling Capacity	38mm
Drill Head
Spindle Nose	MT-4
Spindle Travel	220
Dist. from Column to Spindle Max/Min.	810-360
Dist. from Spindle to base Max/Min.	930-230
Number of Spindle Speed Feeds	8
Spindle Speed Range	62 to 1980 RPM
Working Range
Number of Power Feeds	2
Power Feed Range	0.08-0.04 mm. Rev
Column Diameter	168
Power
Drilling Motor	1.50/1400 KW/rpm
Elevation Motor for arm	0.50/1440 KW/rpm

Standard Accessories
Motor Pulley 2 Nos., Drill Drift, Oil Can, Manual Book

Optional Accessories
Box Table 'T' Stand, V, Belts, Coolant Pump with fitting, Electrical Control Panel & Motors

Also available in hand find feed attachment..
