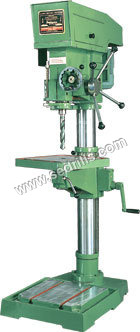

Heavy Duty Pillar Drill Machine
Product Details:
X
Product Description
We hold the acumen and experience in manufacturing, supplying and trading Heavy Duty Pillar Drill Machines. These machines are fabricated using premium quality raw material sourced from trusted vendors of the market. These machines have sturdy construction, dimensional accuracy and durability. The machines offered by us are highly appreciated in the market for their reliable & efficient performance. These Heavy Duty Pillar Drill Machines are available in the market at very affordable rates.
| CAPACITY | M.S. | C.I. |
| Drilling Capacity | 40 mm | 40 mm |
| DRILL HEAD |
|
|
| 1. Column Diameter |
| 130 mm |
| 2. Spindle Nose |
| MT - 4 |
| 3. Spindle Travel | mm | 220 |
| 4. No. of Spindle Speed |
| 8 |
| 5. Range of spindle Speed | RPM | 75 - 2070 |
| 6. Range of Power Feed | mm | (2) 0.08" 0.04 |
| POWER |
|
|
| Main Motor | HP | 1.5 |
| WORKING RANGE |
|
|
| Max. Distance Base Plate to Spindle | mm | 1040 |
| Distance of Spindle to Table | mm | 515 |
| Base Size | mm | 490 x 470 |
| Table Size | mm | 435 x 435 |
| G.W/N.W. |
|
|
| Wooden Case L x W x H | mm | 1140 x 650 x 1950 |
