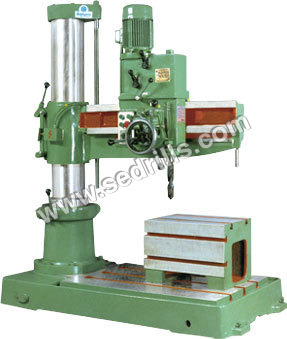

Heavy Duty All Geared Radial Drill Machine

Product Description

Heavy Duty All Geared Radial Drill Machine

"SIDDHAPURA" 62mm Cap. Heavy Duty All Geared Radial Drill Machine With Complete Electrical.

We would like to take this opportunity in introducing SIDDHAPURA ENTERPRISE (ISO 9001:2008 Certified Company), as one of the leading manufacturer of Radial & Pillar type Drilling Machine in Bhavnagar, Gujarat, INDIA. SIDDHAPURA ENTERPRISE is a leading global name in the drill industry.

Silent Feature:

• Massive and rigid construction.




          Ergonomically grouped control for operating convenience.

          Light centering of spindle.

          Precise depth release.

          Mechanically clamping provided for drill head, arm and sleeve.

          Shock free engagement of taps through clutch and spindle reverse for withdrawals.





  Drilling CAPACITY
  In Steel	50 mm
  In Cast Iron	60 mm
  Tapping Capacity
  In Steel	56 mm
  In Cast	70 mm
  Boring Capacity
  In Steel	90 mm
  In Cast	110 mm
  Spindle Tapper	MT-5
  Drilling Depth	325 mm
  Spindle Feeds	6/0.12 To 1.2 mm/rev.
  Spindle Speed	12/40 TO 1700RPM
  Spindle Diameter	81.8 mm
  Drill Power	4.8 Hp
  Arm Elevating Motor Power	2 Hp
  Coolant Pump Motor Power	0.15Hp
  Box-Table	600mmX500mmX500mm
  WORKING RANGE
  Drilling Radius Max./Min.	1500mm/530mm
  Distance from Column to Spindle Max. / Min.	1325mm/355mm
  Max. Drilling Head Travel	970mm
  Distance from base to spindle Max. /Min.	1450mm/385mm
  Working Surface of Base Plate	L 1490mm/W910mm
  Dimensions
  Swing of Arm	1860mm
  Overall Height of the Machine	2790mm
  Approximate Net Weight	3500Kgs.
  Case Dimensions	2810x1280x2983mm
