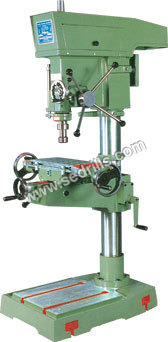

Drilling cum milling Machine
Product Details:
X
Product Description
We have gained the reputation of being a trusted manufacturer, supplier and trader of Drilling cum Milling Machine in the market. These machines are fabricated using advanced techniques and in compliance with the set industry standards. These machines are highly demanded in the market owing to their lower power consumption and flawless operation. These machines have high performance and are easy to use & maintain. These Drilling cum milling Machines are used for drilling and milling holes in different materials.
Other details:
| CAPACITY | M.S. | C.I. |
| Drilling Capacity | 35 mm | 40 mm |
| Width of Face Milling |
| 100 mm |
| End Mill |
| 25 mm |
| Tapping |
| 22 mm |
| DRILL HEAD |
|
|
| 1. Column Diameter |
| 114 mm |
| 1. Spindle Nose |
| MT - 4 |
| 2. Table Travel (XxYxZ) | mm | 340x830x305 |
| 3. No. of Spindle Speed |
| 8 |
| 4. Range of spindle Speed | RPM | 75 - 2070 |
| POWER | H.P. | V- Belt |
| Main Motor | 1.5 | B-58 |
| WORKING RANGE |
|
|
| Max. Distance Base Plate to Spindle | mm | 830 |
| G.W/N.W. |
|
|
| Wooden Case L x W x H | mm | 1140 x 800 x 2330 |
