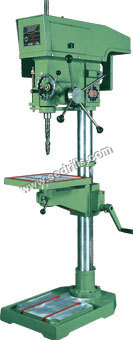

Bench Drilling Machine
Product Details:
X
Product Description
We are a reputed manufacturer, supplier and trader of Bench Drilling Machines in the market. These machines are manufactured in compliance with the industry standards by employing sophisticated techniques. Owing to their corrosion resistance and low maintenance, these machines are highly demanded in the market. These machines are easy to install & operate and are known to perform accurate drilling operations. Bench Drilling Machines are widely used for drilling operations in small and medium industries.
| CAPACITY |
| M.S. |
| Drilling Capacity | mm | 25 |
| DRILL HEAD |
|
|
| 1. Column Diameter | mm | 87.60 |
| 2. Spindle Nose |
| MT - 3 |
| 3. Spindle Travel | mm | 250 |
| 4. No. of Spindle Speed |
| 8 |
| 5. Range of spindle Speed | RPM | 73 - 1800 |
| POWER | HP | V-Belt |
| Main Motor | 1 | B-52 |
| WORKING RANGE |
|
|
| Max. Distance Base Plate to Spindle | mm | 980 |
| Distance of Spindle to Table | mm | 600 |
| Base Size | mm | 350 x 325 |
| Table Size | mm | 375 |
| G.W/N.W. |
|
|
| Wooden Case L x W x H | mm | 650 x 500 x 1525 |
