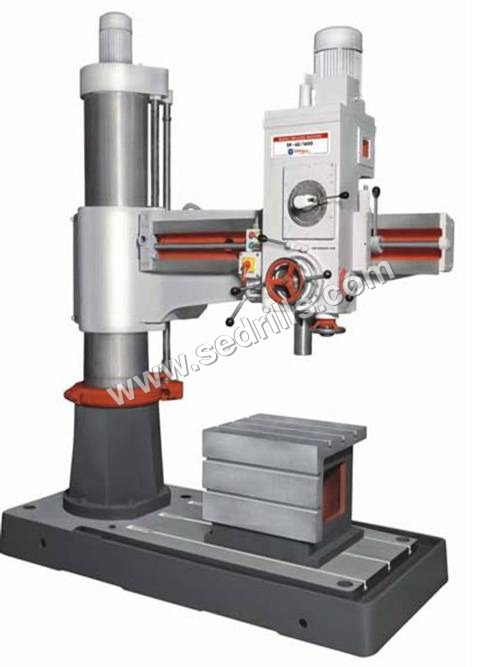

Radial Drill Machine

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

With profound industry experience, we have emerged as one of the leading manufacturers, suppliers and traders of Radial Drill Machine. These machines are fabricated and tested in accordance with with various industry parameters and norms. These machines are easy to install and operate. These machines are widely known for their smooth and efficient functioning. These Radial Drill Machines are widely used in various small, medium and heavy duty industries and are available at market leading prices.

CAPACITY	M.S.	C.I.
Drilling Capacity	40mm	40 mm
DRILL HEAD
1. Spindle Nose		MT - 4
2. Spindle Travel	mm.	175
3. No. of Spindle Speed		8
4. Range of spindle Speed	RPM	90-1000
5. Range of Power feed	mm/Rev.	(2) 0.20-0.10
POWER
Main Motor	HP/RPM	1.5/1400
Arm Elevating Motor		0.75/1400
WORKING TABLE
L x W x H	mm.	510 x 380 x 355
WORKING RANGE
1. Drilling Radius Max. / Min.	mm.	1115 / 550
2. Max. / Min. Distance Column to Spindle	mm.	1020 / 400
4. Max. /Min. Base Plate to Spindle	mm.	1180 / 430
5. Diameter of Column.	mm.	210
BASE PLATE
1. L x W x H	mm.	1625 x 850 x 190
2. Working Surface	mm.	1020 x 650
3. No. of T - Slot	mm.	(3) 16
4. Overall Height	mm.
Wooden Case L x W x H	mm.	1750 x 1000 x 2000
