Pillar Drilling Machine

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

We are reckoned as one of the prominent manufacturers, suppliers and traders of premium quality Pillar Drilling Machine in the market. These machines are fabricated using latest technologies and are tested on various parameters before delivering at the clients' end. These machines have sturdy construction and are highly resistant to wear. These are available in various models to suit different requirements of our clients. Pillar Drilling Machines are widely used for high speed drilling, precision thread cutting and various other similar applications.

Heavy Duty Pillar Drilling Machine

Design Features

Main spindle made from EN Steel with 6 slots in machined by Hobber machine and Morse taper bore is provide internally grinded.
Provision of window for change of gear on top cover.
Spindle sleeve is properly guide in honed drill head bore on 6 ball & roller bearing forsmooth & accurate running.

Technical Specifications

Machine Capacity	32 mm
Column Diameter	114 mm
Center of Spindle To Column	280 mm
Distance Spindle to Table	625 mm
Distance Spindle to Base	1045 mm
Spindle Nose	MT-3
Spindle Travel	170 mm
Range of Spindle Speed	75/2070 RPM
No. of Spindle Speed	8
Range of Power Feed	Manual
Table Size	390 x 390 mm
Base Size (Machine area)	390 x 390 mm
V-Belt Section	B-58
Overall Height With Guard	1745 mm
Main Electrical Motor	1.5 HP
Shipping Case L x W x H	1050 x 600 x 1900 mm

Standard Accessories : Motor Pulley, Fine Feed Attachments & Drill key

Optional Accessories : Electric Motor, Reversible Switch, V-belt, Drill Chuck, Arbour, Coolant Pump With Tank & Fittings.

Other Products in 'Pillar Drill Machine' category

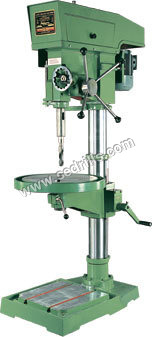

Pillar Type Drilling Machine

Send Inquiry

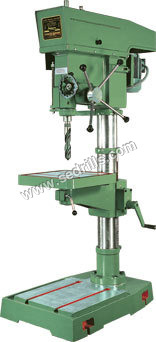

Heavy Duty Pillar Drill Machine
