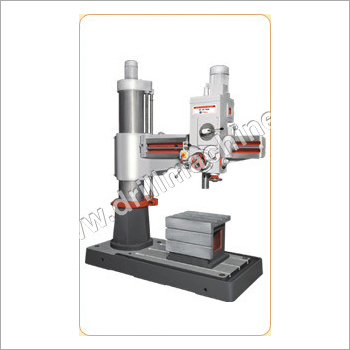

High Precision Radial Drilling Machine

High Precision Radial Drilling Machine
High Precision Radial Drilling Machine
Product Code : SR-62
Brand Name : SIDDHAPURA ENGINEERING
Product Description
SR-62/1600 (62mm Cap. Heavy Duty Radial Drilling Machine)

The Company:

SIDDHAPURA ENGINEERING WORKS, it’s a venture of SIDDHAPURA GROUP, It has come in to existence for last 34 years. With a vast experience of 34 years in the field of machine tools engineering & manufacture of Pillar and Radial drilling machines. It’s main assents is rigid quality inspection methods combined with skilled workmanship led by a team of technically qualified and experienced personnel and dedicated personal attention.

SIDDHAPURA ENGINEERING WORKS aims at creation of wide industry platform in manufacture of drilling machine in wide ranges in mutual benefit between supplier and buyers besides maintaining services, help and close links.

Some Important Feature:

  • Massive and rigid construction.
  • Ergonomically grouped controls for operating convenience.
  • Light centering of spindle.
  • Precise depth release.
  • Mechanically clamping provided for drill head, arm and sleeve.
  • Shock free engagement of taps through clutch and spindle reverse for withdrawals.

Drilling Capacity:

Drilling (M.S.)

50mm

Drilling (C.I.)

60mm

Tapping (M.S.)

56mm

Tapping (M.S.)

70mm

Boring (M.S.)

90mm

Boring (C.I.)

110mm

Drilling Head

Spindle Tapper

MT-5

Spindle Travel

325mm

No. of spindle speed

12

Range of spindle speed

40 to 1700 RPM

No. of spindle feeds

6

Range of spindle feed

0.12 to 1.2 mm/rev.

Spindle Diameter

81.2mm

Electrical:

Power Supply

4.8 HP 415V 50 HZ

Drilling Power

4.8 HP

Arm Elevating Motor Power

2 HP

Coolant Pump Motor Power

0.15 HP

Working Range

Column Dia.

350mm

Drilling Radius Max./ Min.

1500 / 530mm

Distance from column to spindle Max./ Min.

1325 / 355mm

Distance from base to spindle Max./ Min.

1450 / 385mm

Max. Drilling Head Travel

970mm

Base plate working area (L.W.)

1490 x 910mm

Box table area

600 x 500 x 500mm

Dimensions:

No. Of T-slot

3

Wooden case size

2810 x 1280 x 2983mm

Approximate weight

3500 KG

Standard Equipments:

  • Electrical Equipment with wiring, spindle motor, arm elevating motor
  • Built in coolant tank, one oil can, one set of key and spanner,
  • One instruction and spare – parts manual.

Optional equipments:

  • Machine lamp, coolant attachment, box-table with 2 clamping surface
  • 500x600x500mm, mores taper reduction sleeves, mores taper
  • Extension sockets, quick change chuck, collets and tapping adapters,
  • Hydraulic clamping system with motor.
