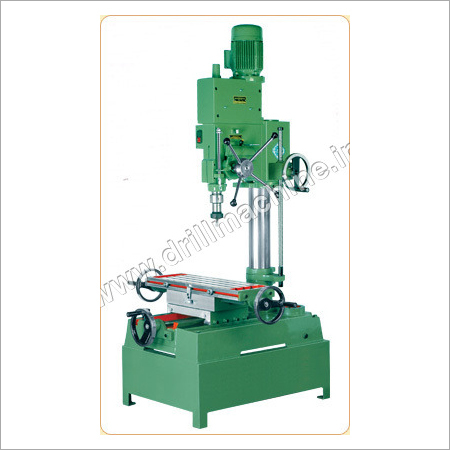

Heavy Duty Universal Milling Machine

Heavy Duty Universal Milling Machine
Heavy Duty Universal Milling Machine
Product Code : SI-6DMU-G
Brand Name : SIDDHAPURA ENGINEERING
Product Description

SI-6DMU/G (40mm Cap. Pillar Drilling Machine)

The Company:

SIDDHAPURA ENGINEERING WORKS, it’s a venture of SIDDHAPURA GROUP, It has come in to existence for last 34 years. With a vast experience of 34 years in the field of machine tools engineering & manufacture of Pillar & Radial drilling machines. It’s main assents is rigid quality inspection methods combined with skilled workmanship led by a team of technically qualified and experienced personnel and dedicated personal attention.

SIDDHAPURA ENGINEERING WORKS aims at creation of wide industry platform in manufacture of drilling machine in wide ranges in mutual benefit between supplier and buyers besides maintaining services, help and close links.

Some important features:

  • Proportioned column for rigidity of machine
  • Rough & smooth feed available by manual and power feed.
  • Provision of window for change of gear on top cover.
  • Quill spacer made of mild steel
  • Main spindle made of EN steel with 6 slots. 8 speed in either direction.
  • Grounded parts finished on imported grinding machine.
  • Major parts castings are of standard grade.
  • Head stock is bored on imported boring machine
  • Spindle sleeve is properly guided in honed drill head bore on 6 ball & roller bearings for smooth & accurate running.

Model No. SI-6DMU/G

Drilling

40 mm

Face Mill

100 mm

End Mill

25  mm

Tapping

22 mm

In mild Steel Drilling

35 mm

Column Diameter

114 mm

Swing

560 mm

Working Surface

725  x 224 mm

Longitudinal Travel Manual

340 mm

Cross Travel

305 mm

Vertical Travel

830 mm

Quill Travel

220 mm

Spindle Taper

MT-4

Range of Spindle Speed

90  to 1000 RPM

No. of Spindle Speed

8

Main Electrical Motor

830  mm

Range of Power feed

2130  mm

Shipping Case (L x W x H)

2 Speed :1.75 / 2.5 HP

Range of Power feed

(2) 0.08 & 0.04

Shipping Case (L x W x H)

1170  x 915  x 2330 mm

Standard Accessories:  Electrical Motor & Starter, Drift Key, Milling Collect Adapters.

Optional Accessories: Coolant Pump, Fabrication base stand.
