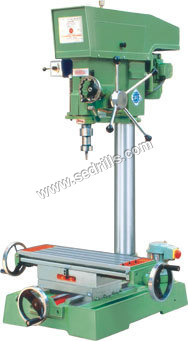

Drilling Milling Machine
Product Details:
X
Product Description
Owing to our rich industry experience, we have emerged as one of the leading manufacturers, suppliers and traders of Drilling Milling Machines in the market. These machines are brought into market only after being tested on various parameters. These machines are widely applauded in market for their high performance and durability. These machines are easy to operate & install. These Drilling Milling Machines are widely used in industries for drilling, tapping or milling purposes.
| CAPACITY | M.S. | C.I. |
| Drilling Capacity | 35 mm | 40 mm |
| Width of Face Milling |
| 100 mm |
| End Mill |
| 25 mm |
| Tapping |
| 22 mm |
| DRILL HEAD |
|
|
| 1. Column Diameter |
| 130 mm |
| 1. Spindle Nose |
| MT - 4 |
| 2. Table Travel (XxYxZ) | mm. | 325x400x250 |
| 3. No. of Spindle Speed |
| 8 |
| 4. Range of spindle Speed | RPM | 75 - 2070 |
| POWER | H.P. | V-Belt |
| Main Motor | 1.5 | B-62 |
| WORKING RANGE |
|
|
| Max. Distance Base Plate to Spindle | mm. | 940 |
| BASE PLATE |
|
|
| 1. Dimension of Base | mm. | 490 x 470 mm |
| 2. G.W/N.W. |
|
|
| Wooden Case L x W x H | mm. | 1140 x 800 x 1950 |
