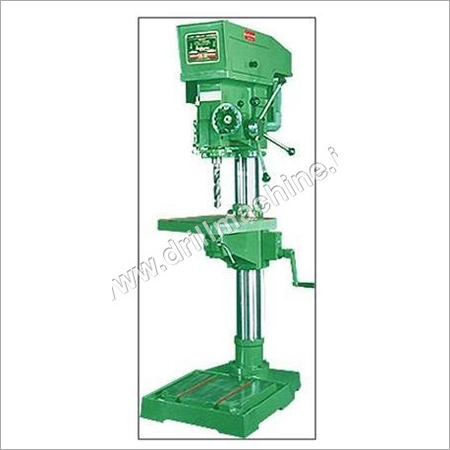

Column Drilling Machine

Column Drilling Machine
Column Drilling Machine
Product Code : SE-4/A
Brand Name : SIDDHAPURA ENGINEERING
Product Description

SE-4/A (32mm Cap. Pillar Drilling Machine)

The Company:

SIDDHAPURA ENGINEERING WORKS, its a venture of SIDDHAPURA GROUP, It has come in to existence for last 34 years. With a vast experience of 34 years in the field of machine tools engineering & manufacture of Pillar & Radial drilling machines. Its main assents is rigid quality inspection methods combined with skilled workmanship led by a team of technically qualified and experienced personnel and dedicated personal attention.

SIDDHAPURA ENGINEERING WORKS aims at creation of wide industry platform in manufacture of drilling machine in wide ranges in mutual benefit between supplier and buyers besides maintaining services, help and close links.

Some important features:

  • Important parts are made from close graded casting.
  • Main Spindle made from EN steel.
  • Main Quill and spindle are hardened and grounded and spindle tapper bore is also internal grinded.
  • Main spindle run out of tolerance as per IS:2199
  • Drill Head are made from best quality martial and boring on imported boring machine of Japan.
  • Precision anti-friction bearing for all rotating members.

SE-4/A

Machine Capacity

32 mm

Column Diameter

114 mm

Centre of Spindle  to Column

280 mm

Distance Spindle to Table

625 mm

Distance Spindle to Base

1045 mm

Spindle Nose

MT - 3

Spindle Travel

170 mm

Range of Spindle Speed

75 / 2070 RPM

No. of Spindle Speed

8

Number of Auto Power

(2)

Range of Power Feed

0.20 -0.10 mm Rev

Table Size

390 x 390 mm

Base size (Machined area)

390 x 390 mm

V-Belt Section

B- 58

Overall Height With Guard

1745 mm

Main Electrical Motor

1.5 H.P.

Wooden Case L x W x H

1050 x 600 x 1900 mm

STANDARD ACCESSORIES: Motor Pulley, & Drift Key

OPTIONAL ACCESSORIES: Electric motor, Reversible Switch,V-belt, Drill Chuck, Arbor, Coolant Pump With Tank & Fitting l>Motor Pulley, Drift key, Fine feed attachment.
