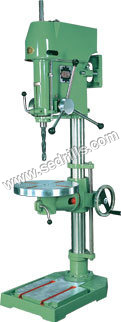

Bench Pillar Drill Machine

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

We are ISO 9001:2008 certified company, engaged in manufacturing, supplying and trading a wide range of Bench Pillar Drill Machines. These machines are manufactured using high quality raw material procured from reputed vendors of the market. These machines are highly acknowledged for their robust construction, high tensile strength and great performance. The machine base comes with ribs that ensure their rigidity and stability. Moreover, these Bench Pillar Drill Machines are available in the market at affordable rates.

CAPACITY		M.S.
Drilling Capacity	mm	25
DRILL HEAD
1. Column Diameter	mm	87.60
2. Spindle Nose		MT - 3
3. Spindle Travel	mm	185
4. No. of Spindle Speed		8
5. Range of spindle Speed	RPM	73 - 1800
POWER	HP	V-Belt
Main Motor	1	B-52
WORKING RANGE
Max. Distance Base Plate to Spindle	mm	1050
Distance of Spindle to Table	mm	650
Base Size	mm	625 x 420
Table Size	mm	345 x 345
G.W/N.W.
Wooden Case L x W x H	mm	950 x 500 x 1525
