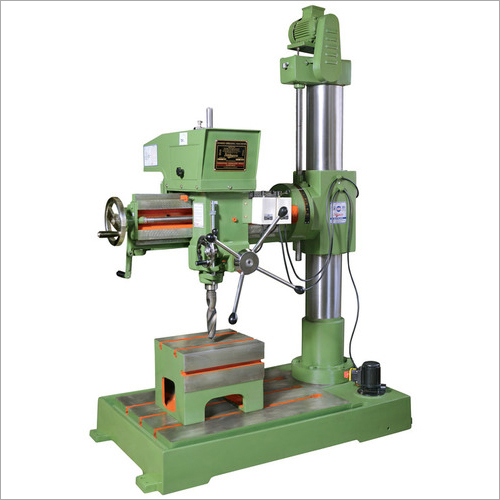

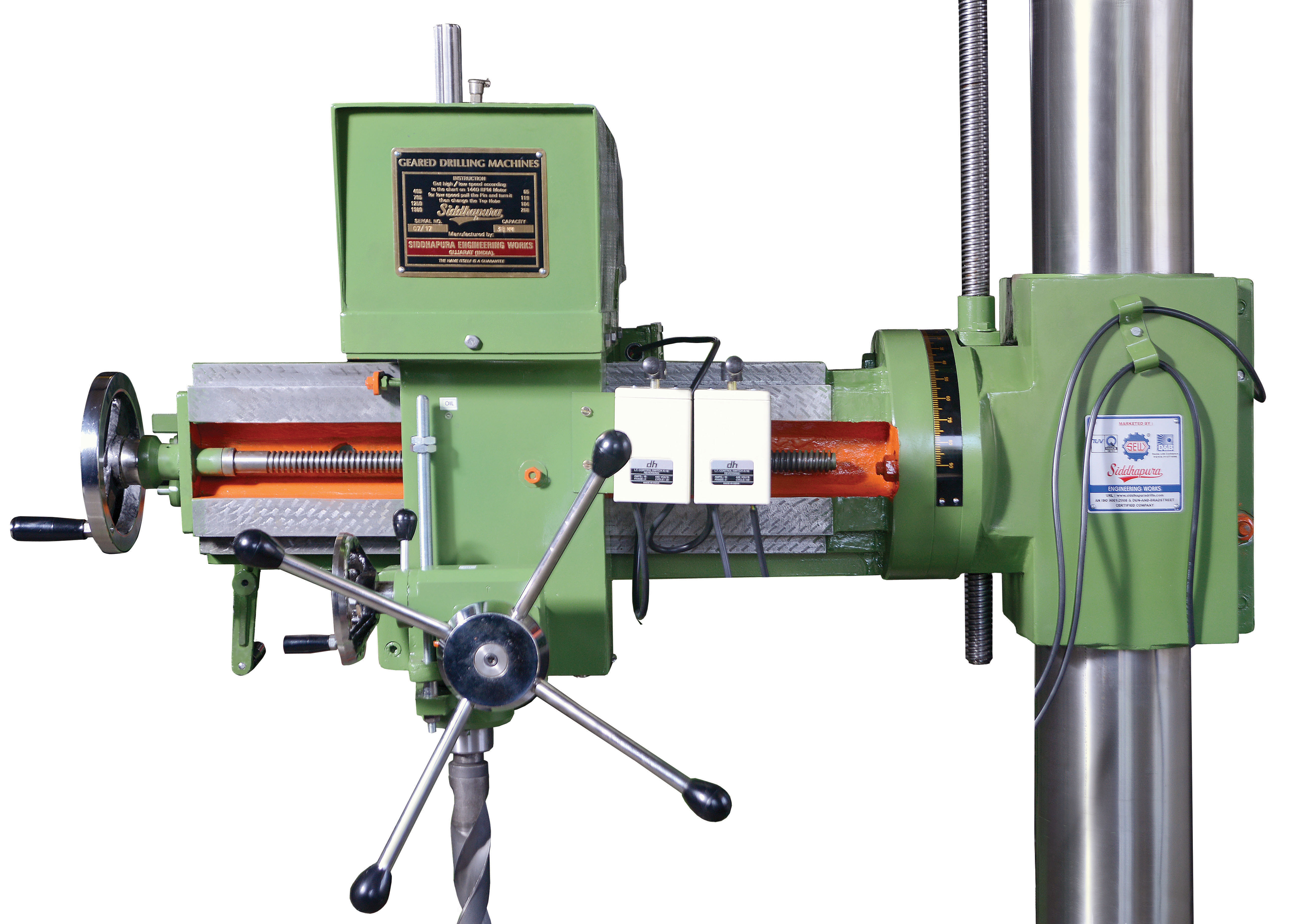

40mm Cap. Radial Drilling Machine with Fine Feed

40mm Cap. Radial Drilling Machine with Fine Feed
Send Inquiry
Product Code : SEW-R-I
Brand Name : SEW
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
Product Specifications
  • Condition
  • New
  • Table Size
  • 380X300X300 mm
  • Spindle Speed
  • 62-1980 RPM
  • Product Type
  • Radial Drilling Machine
  • Material
  • Mild Steel
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • Normal
  • Voltage
  • 220 - 380 Volt (v)
  • Power Source
  • Electric
  • Capacity
  • 40 mm
  • Color
  • Green
Product Description

40mm Capacity Radial Drilling Machine with Fine Feed

SIDDHAPURAENGINEERINGWORKS aims at creation of wide industryplatforminmanufactureofdrillingmachineinwiderangesinmutualbenefitbetweensupplierandbuyersbesidesmaintainingservices, helpandcloselinks.



Description

Capacity & Size

Drilling Capacity In MS

40mm

Drilling Capacity In CI

45mm

Tapping Capacity In MS

28mm

Rough Boring In MS

50mm

Spindle Nose Tapper

MT-4

Spindle Travel

250mm

Number Of Spindle Speed

8

Range Of Spindle Speed

62-1980 RPM

Number Of Power Feed

2(0.1 & 0.2) Auto Feed

Drilling Radius Max. / Min.

1095 / 440mm

Max. / Min. Distance Column To Spindle

920 / 360mm

Maximum Drill Head Travel

560mm

Max. / Min. Base Plate To Spindle

935 / 190

Diameter Of Column

180

SwivelOfARML/RSide

90

Box Table Size

380 X 300 X 300

Base Plate Size

760 X 1370 X 160

Working Surface

890 X 630

No. Of T-Slot / Size

3 / 16mm

Overall Height

2000




  • StandardEquipments:
    Box
    Table (380 X 300 X 300) MotorPulley 2 No’s, DrillDrift. OilCan

  • Optional equipments:
    V-Belt, Coolant Pump & tank with fittings.

    Electric
    R/vSwitches, ElectricMotor.


Some Important Feature:

  1. Mainspindlemadefromalloyssteelwith 6 slotismachinedbyhobblermachineandMT-boreisprovidedinternallygrinded.

  2. Provided 8 speed by accurate balanced pairs of cone pullys, sleeve is properly grinded and hardened is guided in honed, drill head bore spindle is mounted on five ball & roller bearing for smooth and accurate running.

  3. By simple adjustment of only tapper wedge facility to set drill head on arm guide way.

  4. Top cover provided with window for changing gears and setting V-belt for desired RPM.

  5. Lever facility for v-belt tension.

  6. Gear made from best quality material is helical teethed on imported hobbling machine for smooth and noiseless running.

  7. Pillar & other parts being provided in machine are ground,

  8. Gradationsareprovidedonprotectorforswivelingofradial.

  9. Arm to adjustable depth control.

  10. Auto as well as manual feeds.


Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 1 Unit Unit Per Day
  • Delivery Time
  • 1 Days
  • Packaging Details
  • Gunny Bag
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
